Description

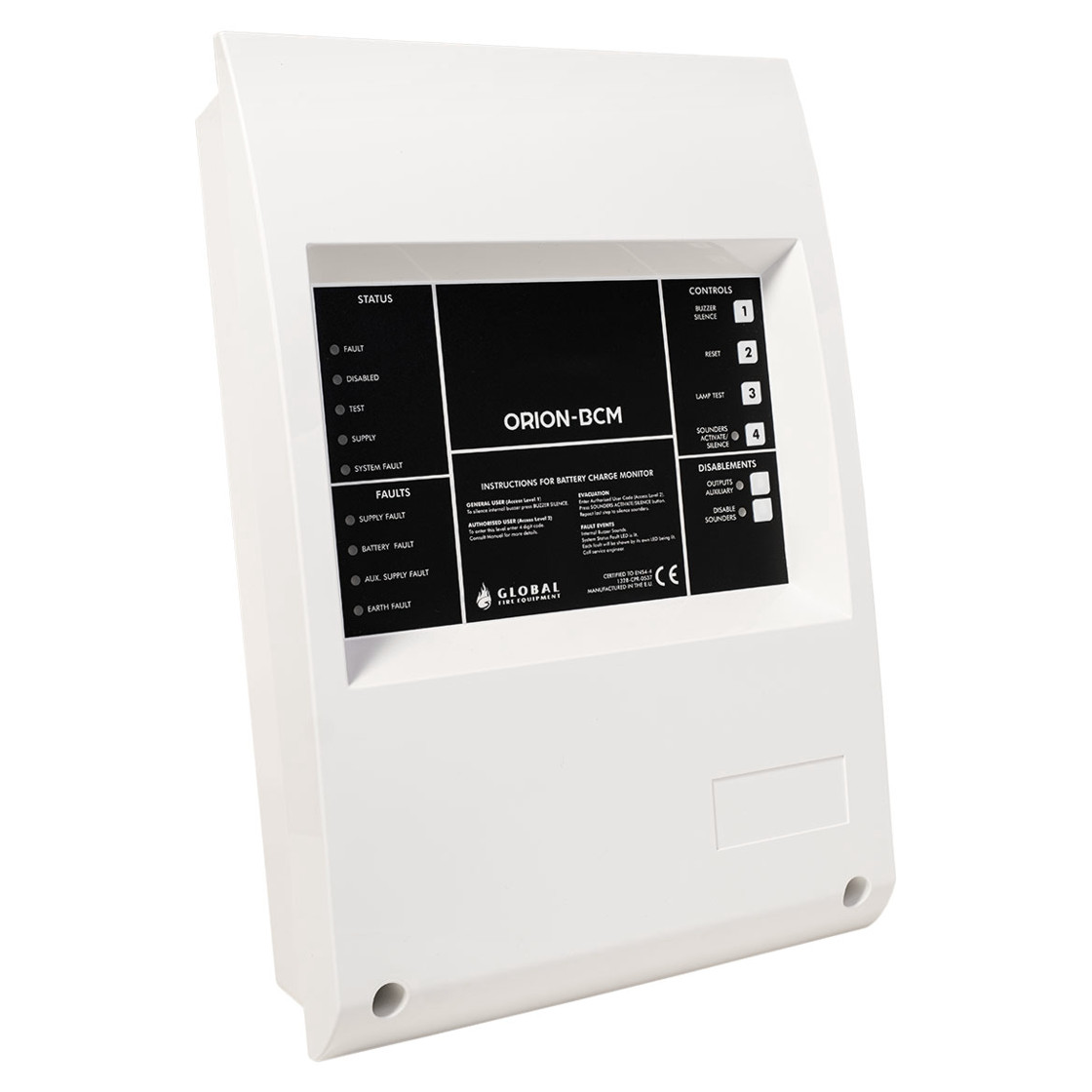

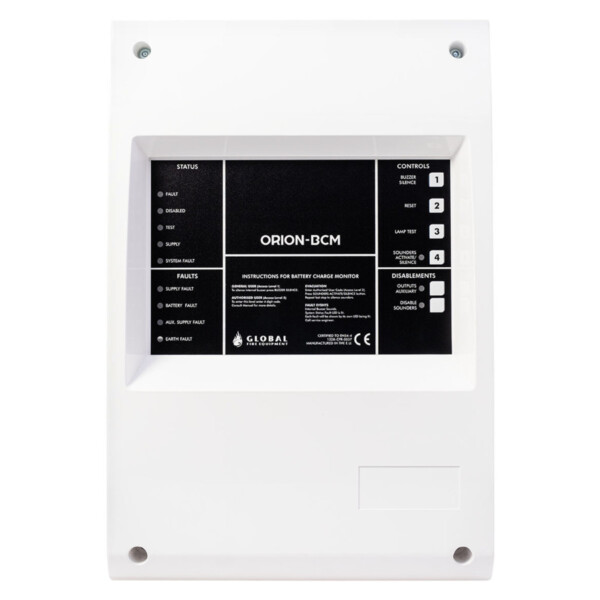

ORION-BCM est un module de chargeur de batterie autonome certifié EN54-4 avec un circuit de sirène conventionnel et des relais d’alarme et de défaut internes.
ORION BCM
Informations complémentaires
| Marque | GLOBAL Fire Equipement |
|---|---|
| MAINS SUPPLY VOLTAGE | 230 +10% -15% V AC |
| INTERNAL POWER SUPPLY | Min. 21V DC – Max. 30V DC (28.5V DC nominal) Max. Ripple 1 Vpp |
| TOTAL OUTPUT CURRENT | 1,7A @ 230V AC |
| SUPPLY AND BATTERY CHARGER MONITORED | Yes |
| MONITORED BATTERIES | Yes |
| BATTERIES MAX. INTERNAL RESISTANCE | 1 Ohm |
| MAX BATTERY SIZE | 2 x 12 V 7AH VRLA – Sealed Lead Acid Batteries Min. Voltage 21,0V DC (Vb min) – Max. Voltage 27,2V DC |
| MAINS FUSE | 4 A – 250V Slow Blow – 20 mm |
| BATTERY FUSE | 1.6 Amp Resettable – Electronic Fuse |
| MAX CURRENT DRAW FROM BATTERY (MAINS FAIL) | 1.5 Amp Max. @ Max. Operating Temperature |
| SIZE | 273 (L) x 107 (W) x 404 (H) mm |
| WEIGHT | 1,7 Kg / 7 kg (inc. 2 x 7 AH 12 V batteries) |
| OPERATING TEMPERATURE | -10 to +50ºC |
| MAX RELATIVE HUMIDITY | 95% non condensing |
